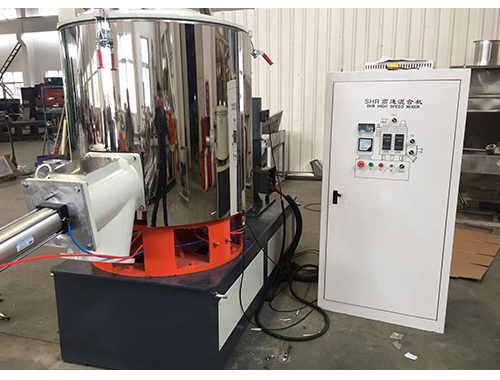

SHR系列高速混合機主要用于塑料、橡膠、制藥、染料、食品、日用化工等行業(yè)的物料混合、攪拌、干燥、著色。 技術參數(shù)（Technical parameters）
型號?Type | 總容積?Total capacity?Total capacity | 有效容積?Effective capacity | 電機功率?Motor power | 加熱功率?Heating power | 主軸轉速 Speed | 加熱方式 Heating method | 卸料方式 Material discharging | 外形尺寸 Dimension |
SHR-5A | 5L | 3L | 1.1kw | 無 | 1440rpm | 自摩擦?Self-friction | 手動 By hand | 620*300*730 |
SHR-10A | 10L | 7L | 3kw | 無 | 1440rpm | 1200*300*830 |
SHR-25A | 25L | 17L | 5.5kw | 無 | 1440rpm | 1200*350*850 |
SHR-50A | 50L | 35L | 7/11kw | 3kw | 750/1500rpm | 電加熱 Electricity heating | 氣動 Pneumatic | 2100*700*1100 |
SHR-100A | 100L | 75L | 14/22kw | 6kw | 650/1300rpm | 2100*800*1500 |
SHR-200A | 200L | 150L | 30/42kw | 6kw | 475/950rpm | 2400*850*1580 |
SHR-300A | 300L | 225L | 40/55kw | 6kw | 475/950rpm | 2800*1080*1680 |
SHR-400A | 400L | 300L | 47/67kw | 9kw | 430/860rpm | 3160*1150*1760 |
SHR-500A | 500L | 375L | 55/75kw | 9kw | 430/860rpm | 3160*1150*1880 |
SHR-800A | 800L | 600L | 83/110kw | 12kw | 370/740rpm | 3385*1380*2750 |
SHR-1000A | 1000L | 750L | 110/160kw | 15kw | 325/650rpm | 3460*1380*2900 |
